ADL400 Modbus Electronic Meter Rated Voltage 3x380~456Vac L-L Support MQTT In Charging Pile
ADL400 Modbus Electronic Meter Rated Voltage 3x380~456Vac L-L Support MQTT In Charging Pile
ADL400 Modbus Electronic Meter Rated Voltage 3x380~456Vac L-L Support MQTT In Charging Pile ADL400 Modbus Electronic Meter Rated Voltage 3x380~456Vac L-L Support MQTT In Charging Pile ADL400 Modbus Electronic Meter Rated Voltage 3x380~456Vac L-L Support MQTT In Charging Pile ADL400 Modbus Electronic Meter Rated Voltage 3x380~456Vac L-L Support MQTT In Charging Pile
Contact Now

ADL400 Modbus Electronic Meter Rated Voltage 3x380~456Vac L-L Support MQTT In Charging Pile

Minimum Order Quantity : 1 Price : 45USD
Delivery Time : 3-5 Supply Ability : 9999+
Place of Origin: China Brand Name: Acrel
Certification: EAC Model Number: ADL400

Detail Information
Highlight:

3x380~456Vac Electronic Meter

,

Modbus Electronic Meter

,

Charging Pile Electronic Meter

Product Description

Overview



Product Description
ADL400 Modbus Electronic Meter Rated Voltage 3x380~456Vac L-L Support MQTT In Charging Pile 0

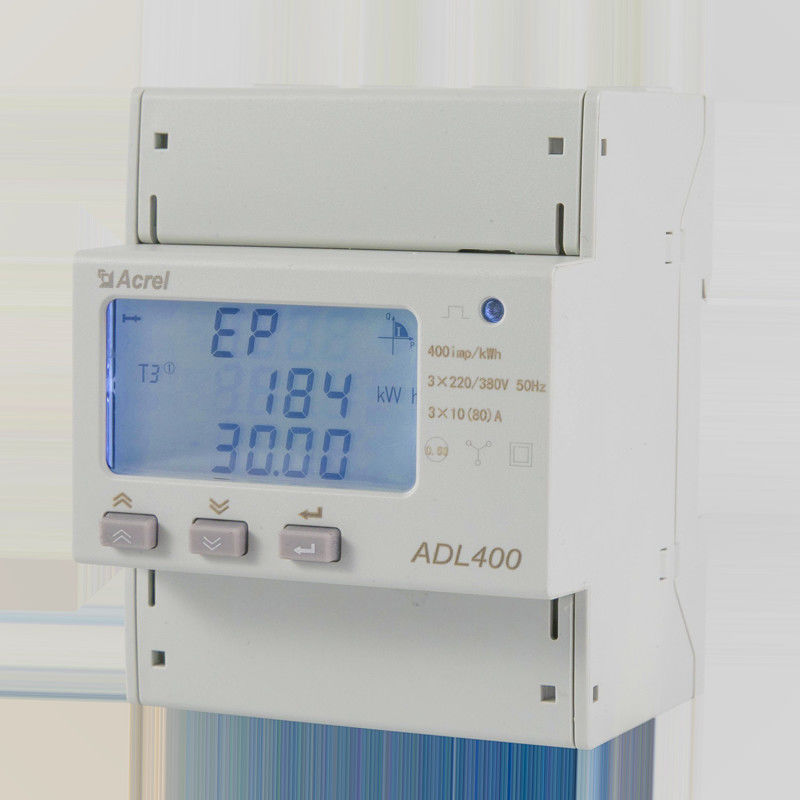

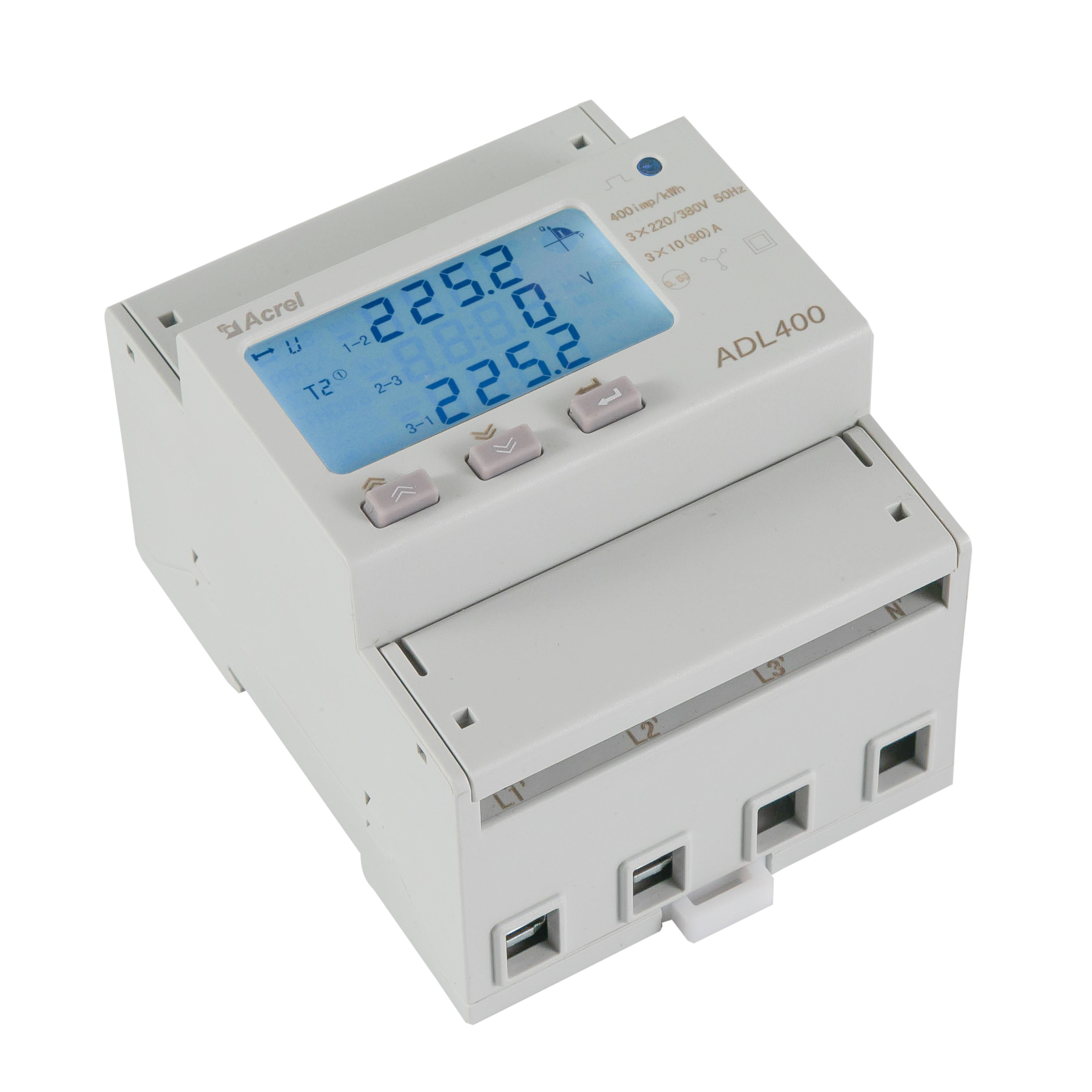

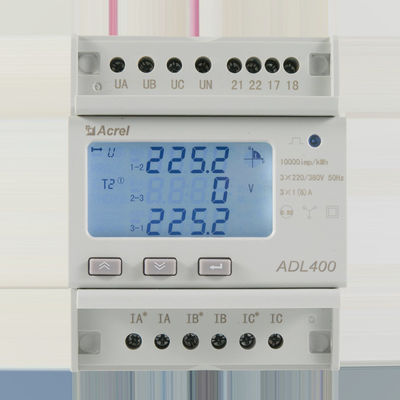

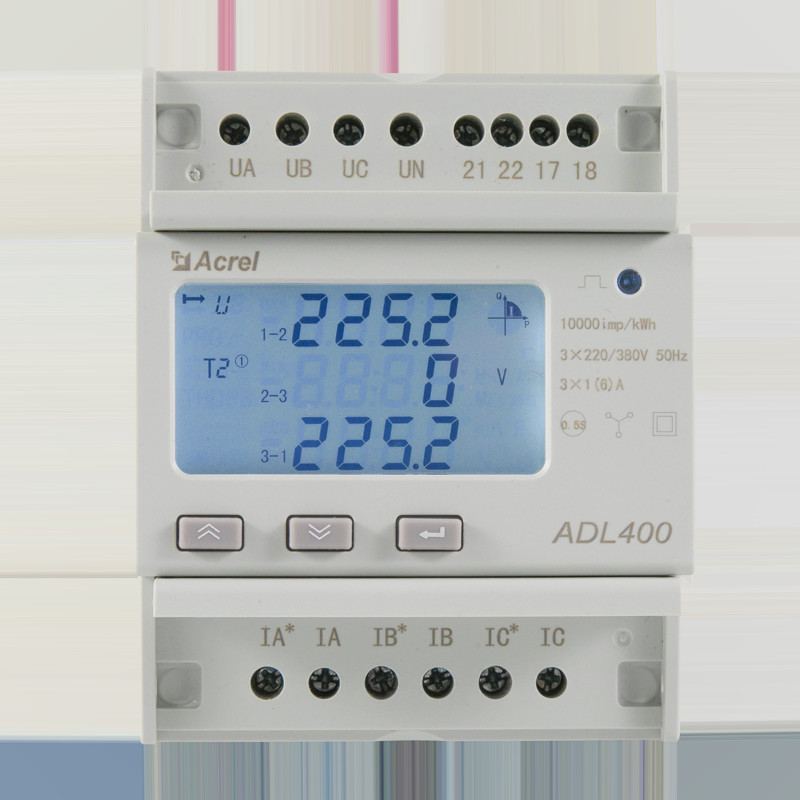

ADL 400
ADL series meter adopts DIN35mm guide rail installation structure, LCD display, can set parameters such as time and rate period, and has the function of electric energy pulse output; RS485 communication interface can be used to exchange data with the host
computer.

The electric energy meter has the advantages of small size, high precision, good reliability, and convenient installation. The sub-item measurement of electric energy can also be used in enterprises and institutions for electric energy assessment and management.
Specification
item
value
Place of Origin
China

Jiangsu
Brand Name
Acrel
Model Number
ADL400
Display Type
Analog and Digital
Phase
Three Phase
Measuring Energy Range
0-99999kwh
Accuracy Class
0.5S
Output Voltage
230V
Operating Temperature
-25 ~+55
Dimensions
72*65*90
Type
din rail energy meter
Installation
DIN Rail Installation
Rated current
10(80)A,1(6)A
Display
LCD Display
Communication
RS485 Port MODBUS-RTU Protocol
Measure
Total)
ADL400 Modbus Electronic Meter Rated Voltage 3x380~456Vac L-L Support MQTT In Charging Pile 1
ADL400 Modbus Electronic Meter Rated Voltage 3x380~456Vac L-L Support MQTT In Charging Pile 2
ADL400 Modbus Electronic Meter Rated Voltage 3x380~456Vac L-L Support MQTT In Charging Pile 3
ADL400 Modbus Electronic Meter Rated Voltage 3x380~456Vac L-L Support MQTT In Charging Pile 4
ADL400 Modbus Electronic Meter Rated Voltage 3x380~456Vac L-L Support MQTT In Charging Pile 5
ADL400 Modbus Electronic Meter Rated Voltage 3x380~456Vac L-L Support MQTT In Charging Pile 6
Packing & Delivery
carton package
ADL400 Modbus Electronic Meter Rated Voltage 3x380~456Vac L-L Support MQTT In Charging Pile 7
Company Profile
ADL400 Modbus Electronic Meter Rated Voltage 3x380~456Vac L-L Support MQTT In Charging Pile 8
