IP30 dia 24mm Split Core Current Transformer / Electric Current Sensor
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
| Minimum Order Quantity : | 1 | Price : | 8USD |
|---|---|---|---|
| Delivery Time : | 3-5 | Supply Ability : | 9999+ |
| Place of Origin: | China | Brand Name: | Acrel |
|---|---|---|---|
| Certification: | CE,ICE,ROHS | Model Number: | AKH-0.66/K-24N |
|
Detail Information |
|||
| Highlight: | AKH-0.66/K-24N split core current sensor,Low voltage distribution system current sensor |
||
|---|---|---|---|
Product Description

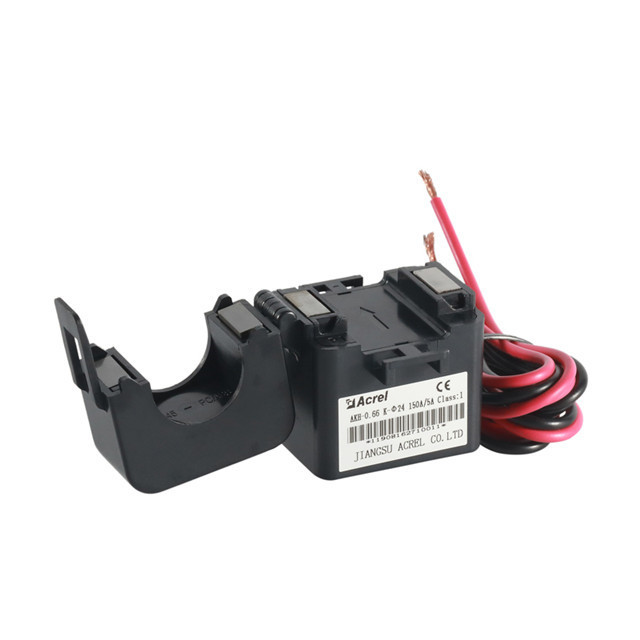

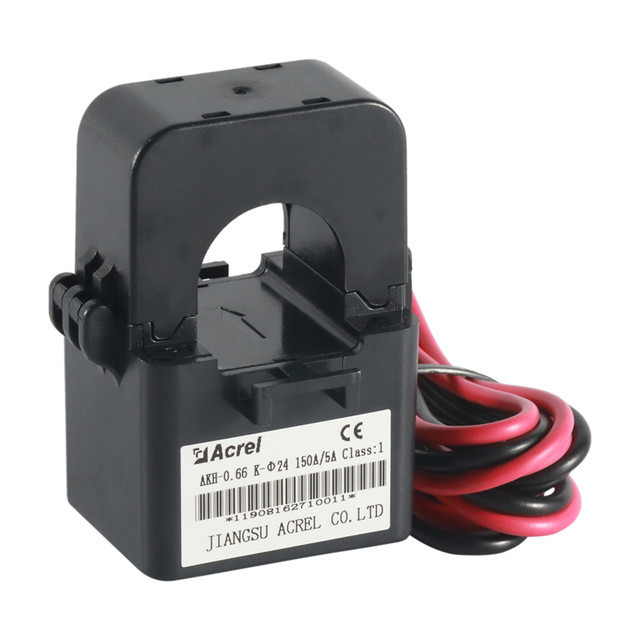

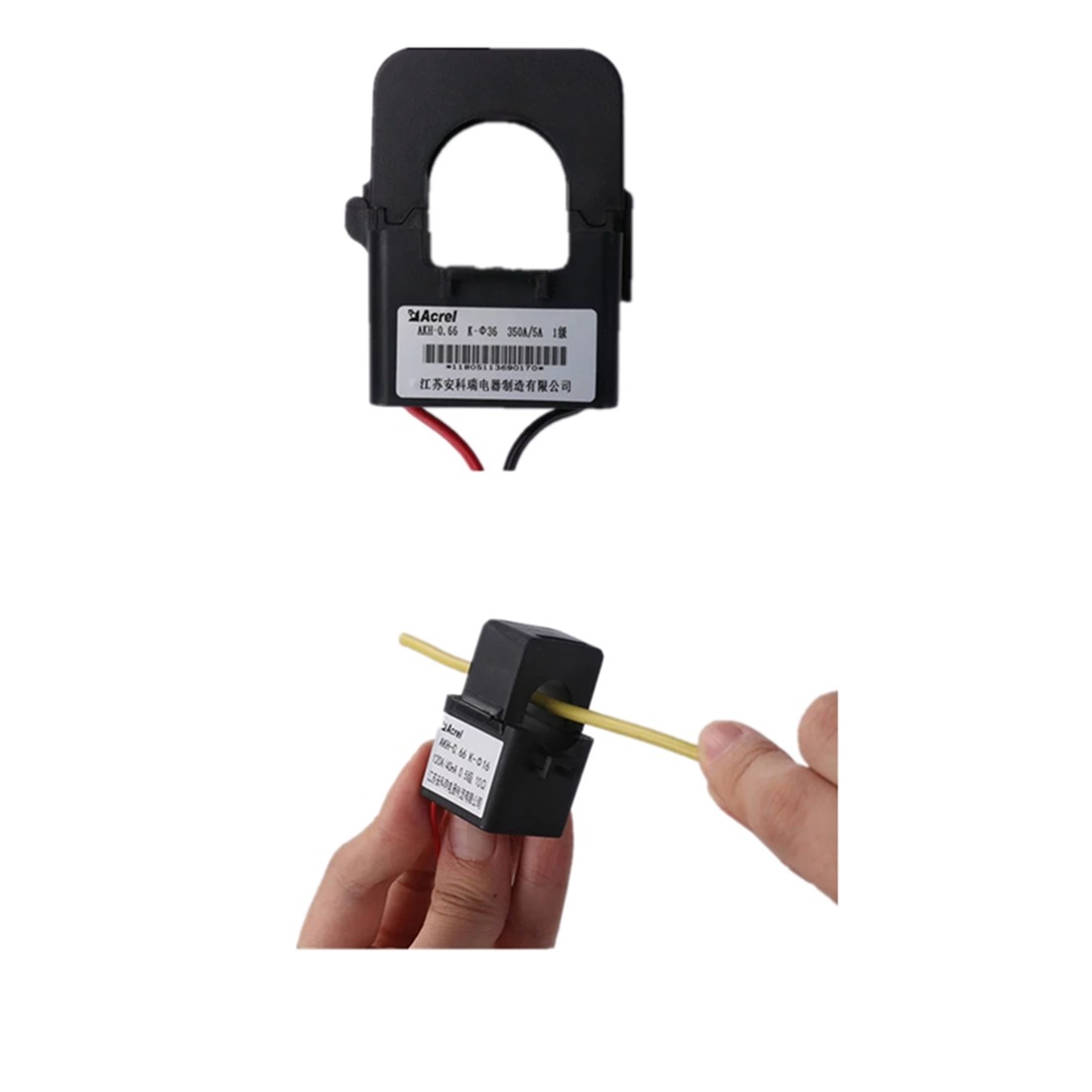

Split core current transformer
AKH-0.66/K-Ф series split currenttransformers are mainly used inreconstructing projects of urban and ruralpower grids. Product has the advantagesof small size, high accuracy, strong loadcapacity, easy installation, etc. They savethe manpower, material resources andfinancial resources and improve theefficiency of users.
*Aperture:24mm
*Rated secondary current: 5A/1A
*Rated primary current: 100A-300A
*Maximum system voltage: 720V 1AC
*Rated frequency: 50/60Hz*Protection level: lP30
