KWh Class 1 ADL200 Din Rail Energy Meter With Digital LCD Display
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
| Minimum Order Quantity : | 1 | Delivery Time : | 5-8work days |
|---|---|---|---|
| Payment Terms : | T/T |
| Place of Origin: | CHINA | Brand Name: | Acrel |
|---|---|---|---|
| Certification: | UL | Model Number: | ADL3000-E |
|
Detail Information |
|||
| Maximum: | 80A | Port: | SHANGHAI |
|---|---|---|---|
| Precision Grade: | Class 1.0,Class 2.0 | Output Voltage: | 380V |
| Working Temperature: | -25~+55 | Pulse Constant: | 3200 Imp/kWH |
| Current Range: | 5A | Accuracy: | KWh: Class 0.5S,kVarh:Class 2 |
| Accuracy Of Measuring: | 0.5Class | Type: | Din Rail Energy Meter |
| Electric Equipment: | Three Phase | Keyword: | Power Monitoring Meter |
| Measurement Range: | 0-999999.99 KWh | Commnunication: | RS485 (MODBUS-RTU) And Infrared |
| Clock: | ≤0.5s/d | ||
| Highlight: | Three-phase DIN Rail Energy Meter,ADL3000-E DIN Rail Energy Meter,Multi-function DIN Rail Energy Meter |
||
Product Description
It has 2~31 sub-harmonic and total harmonic content detection, with switch input and switch output to realize "remote signal" and "remote control" functions, and has alarm output;
It has RS485 communication interface, which can choose MODBUS-RTU or DL/T645 protocol.
Features
|
Diverse Electricity Parameters Measurement ● Harmonic (2~31st voltage¤t)---Optional ● F (Frequency) ● U (3-phase Voltage) ● I (3-phase Current) ● kWh (3-phase positive Kilowatt-hours) ● kVarh (Kilovar-hours) ● P (Power) ● Q (Reactive power) ● S (Apparent power) ● PF (Power factor) |
|
|
Multi-rate/Flexible Tariff ● 4 Time zone ● 4 Tariff rate (Spike, Peak, Flat, Valley) ● 2 Time period list ● 14 Time period by day ● Data Frozen (last 48 months or last 90 days) ● Max demand and occurrence time |
|
|
2 Channel RS485 Communication ● Protocol: MODBUS-RTU ● 1 channel RS485 or 2 channel RS485 both optional |
|
|
3-channel Temperature Measuring ● Thermistor: NTC temperature sensor ● Measuring Range: -40℃~+125℃ |
|
|
DO/DI Switch ● 1 channel DO ● 1 channel DI |
|
|
HMI for Parameters Setting ● Code ● Protocol ● Address ● Baud rate ● Parity ● All Display |
|
|
Infrared Communication for Remote Meter Reading ● Built-in infrared communication ● Easy Remote Meter Reading ● Optional Connection Methods ● Direct Connection with Meter ● First Connection via CT. |
|
|

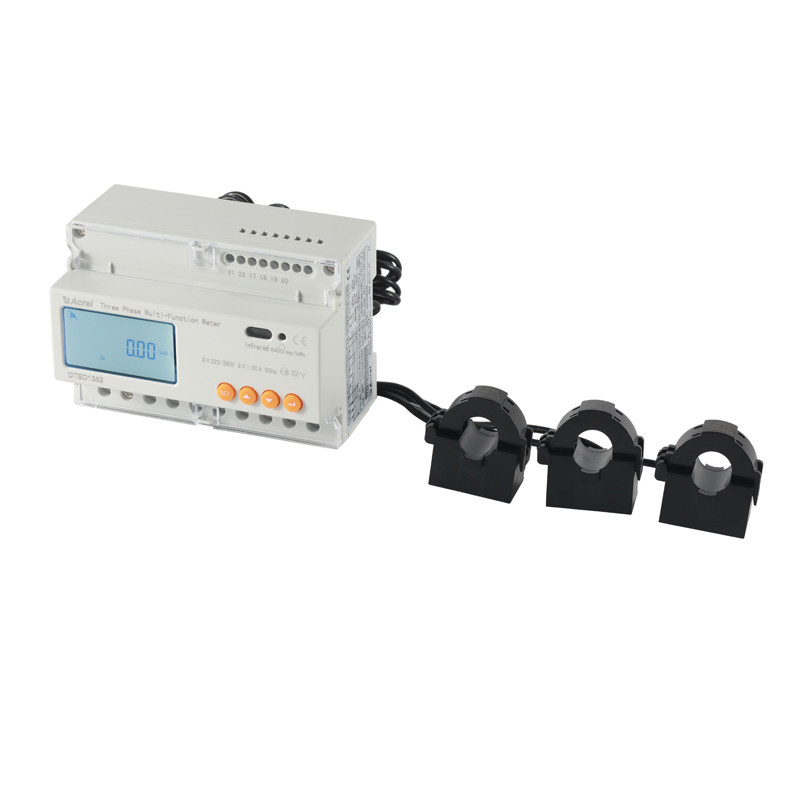

Optional Connection Methods ● Direct Connection with Meter ● First Connection via CT. |
|
Typical Connection
