Acrel AM5SE Series Microcomputer Protection Measurement And Control For Device Voltage Levels 35KV And Below
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
| Minimum Order Quantity : | 1 | Delivery Time : | 5-8work days |
|---|---|---|---|
| Payment Terms : | T/T |
| Place of Origin: | CHINA | Brand Name: | Acrel |
|---|---|---|---|
| Certification: | CE | Model Number: | AM5SE |
|
Detail Information |
|||
| Certifications: | CE, UL, IEC | Auxiliary Power Supply: | AC85V~265V/DC100V~350V |
|---|---|---|---|
| Voltage Input: | 4 | Power Supply: | AC/DC, 24 VDC, 110 VAC, 220 VAC |
| Rated Operational Voltage: | AC 100V | Outputs: | 4 Digital Outputs, 2 Analog Outputs |
| Communication Protocols: | Modbus, IEC 61850, DNP3 | Working Temperature: | -10℃～＋55℃ |
| Theory: | Voltage Relay | Operating Temperature: | -20°C To 60°C |
| Display: | LCD, LED | Relay Output Do: | 10 |
| Protection Level: | IP20 | Altitude: | <2000 |
| Rated Voltage: | AC220V, DC220V, DC110V, AC110V | ||
| Highlight: | AM5SE Line Protection Relay,LCD LED Line Protection Relay,Medium Voltage Line Protection Relay |
||
Product Description

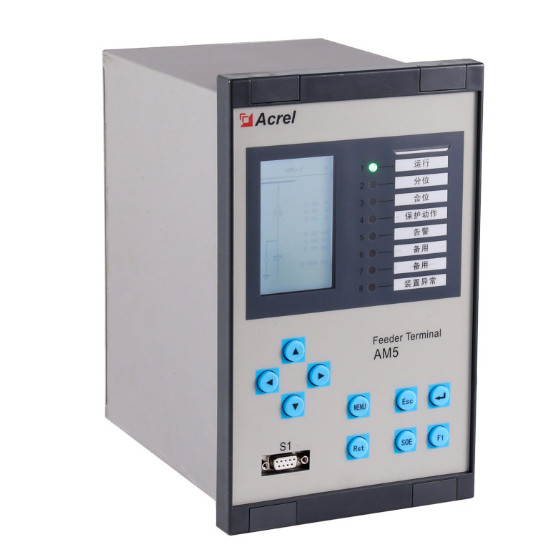

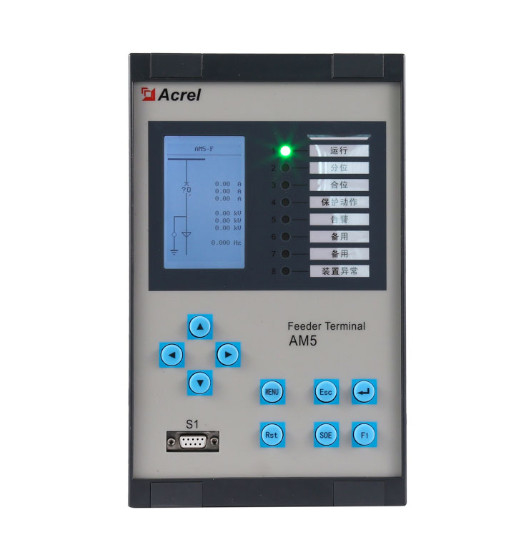

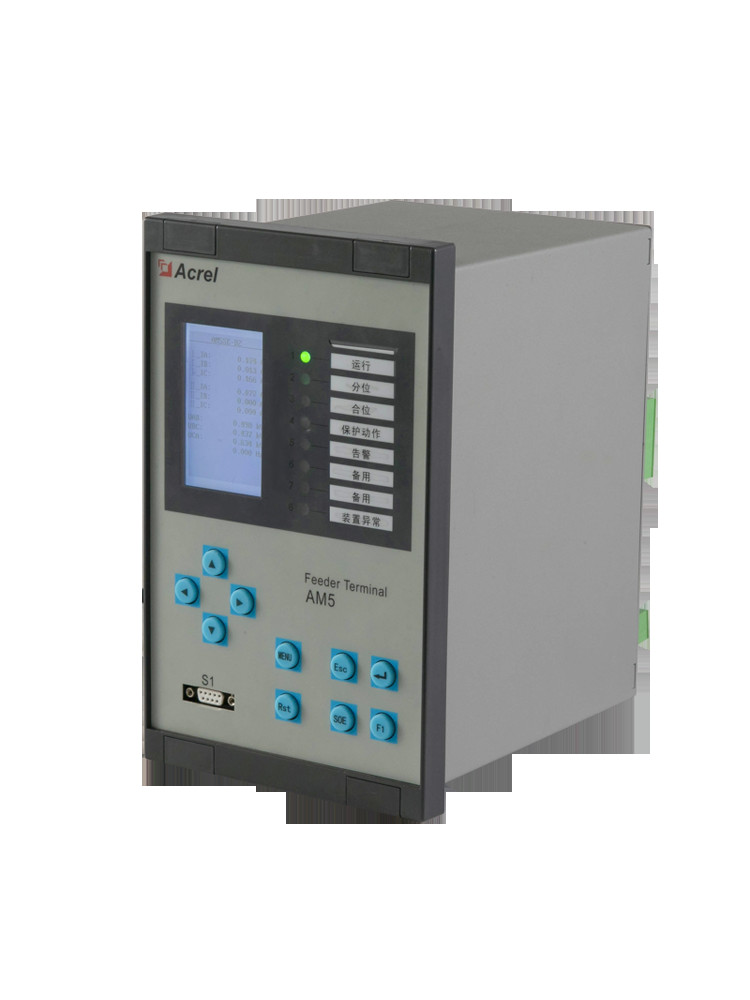

AM5SE Medium Voltage Line Protection Relay
● A complete set of protection, related to the application;
● 8 current input, 4 voltage input, 16 DI, 10 DO;
● Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V;
● 2 RS485 serial communication, IEC 60870-5-101, IEC60870-5-103 and Modbus-RTU;
● 1 RS232 for user update;
● 1 GPS for GPS timing;
● More than 200 sequence of event records, more than 400 system logs, and more than 10 seconds tripping context records;
● Powerful graphic programmable Logic.
● Line protection Motor protection Capacitor protection Feeder protection
Diagram of AM5SE Middle Voltage Switchgear Protection Relay
|
|
Connection
Dimention
Function
