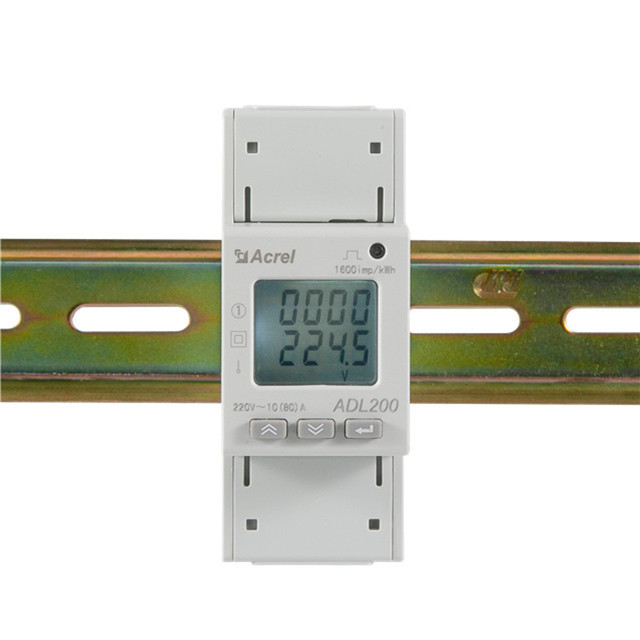

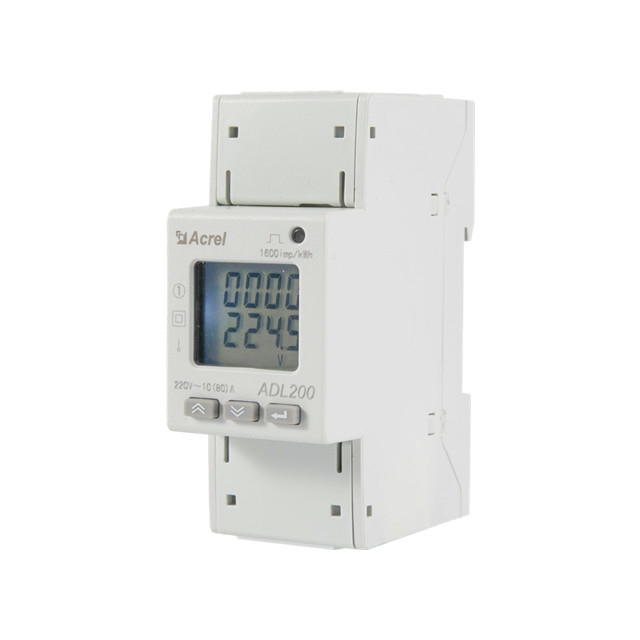

KWh Class 1 ADL200 Din Rail Energy Meter With Digital LCD Display
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
| Minimum Order Quantity : | 1 | Delivery Time : | 5-8 work days |
|---|---|---|---|
| Payment Terms : | T/T |
| Place of Origin: | CHINA | Brand Name: | Acrel |
|---|---|---|---|
| Certification: | CE | Model Number: | ADL200 |
|
Detail Information |
|||
| Customized: | Customized | Measuring Energy Range: | 0-999999.99 KWh |
|---|---|---|---|
| Rated Voltage: | 220~264Vac (direct Connect) | Wiring: | 1-phase 2-wire |
| Standard: | IEC62052-11/IEC62053-21 | Protocol: | Modbus-RTU |
| Appilicaiton: | 1-phase 2-wire | Display: | LCD |
| Usage: | Active Electric Energy Measurement | Keyword: | Kilowatt Usage Meter |
| Phase: | Single Phase | Maximum Current: | 6A,1000A |
| Maximum: | 80A | Commnunication: | RS485 (MODBUS-RTU) And Infrared |
| Measurement Type: | Single Phase | ||
| Highlight: | ACREL ADL200 DIN Rail Energy Meter,Single Phase DIN Rail Energy Meter,Customized Din Rail Energy Meter |
||
Product Description

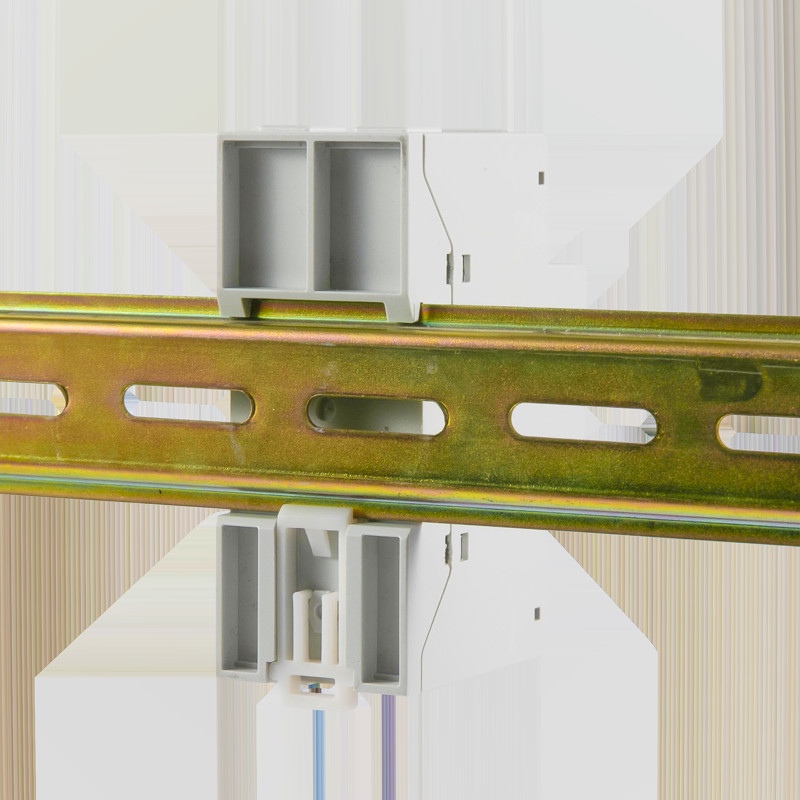

Single-phase electronic energy meter ADL200 is mainly used to measure single-phase active energy of low-voltage network, and can measure voltage, current, power and other electric quantities at the same time, and can be equipped with RS485 communication function, which is convenient for users to monitor, collect and manage electricity consumption. It can be flexibly installed in the distribution box to realize sub-item electric energy measurement, statistics and analysis for different areas and different loads.
It has 2~31 sub-harmonic and total harmonic content detection;
It has RS485 communication interface, which can choose MODBUS-RTU or DL/T645 protocol.
Products Overview
Main Functions
Panel Overview
Main Parameters
Common FAQ
Q: Could ADL200 be used in IoT Energy Monitoring System for factory or building?
A: ADL200 has standard RS485 interface and MODBUS-RTU communication protocol which allow it to be integrate with our IoT Energy Monitor Solution that can enable our users to remotely check all the data collect by energy meters like ADL200 on their mobile phone or PC. For more information, please Contact us or check in IoT Energy Monitoring Solution Introduction.
Q: Why is the reading on ADL200 different from actual value?
A: Check if the wiring was correct according to the wiring diagram of ADL200. The installation direction need to be according to the actual current direction.
Q: What is Multi-rate/tariff function? How does it work?
A: First,multi-rate/tariff function was designed to be used for billing system. Second, the electricity price of different time duration in a day is different in some country.
Energy meter with this function can measure the kwh data and assign them to several time duration in a day and put a label of spike/peak/flat/valley kwh on them respectively. And if such energy meter was connected to the billing system by using a IoT gateway, it can send the kwh data of different time duration which was with the label of spike/peak/flat/valley kwh to the billing system for calculating the electricity bill of different time duration in a day.
For example, the electricity price of spike kwh is 5 USD/1 kwh, and time duration of from 9:00 am to 11:30 am was labeled as spike kwh.
Then, if energy meter record 3 kwh used in total during 9:00 am to 11:30 am, it will send the data of 3 kwh with the label of spike kwh to the billing system, and the system calculate the electricity cost of 3x5=15USD in total from 9:00 am to 11:30 am.
Other Question? Please contact us and we will get back to you as soon as possible.
