KWh Class 1 ADL200 Din Rail Energy Meter With Digital LCD Display
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
| Minimum Order Quantity : | 1pc | Packaging Details : | carton |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | T/T |
| Supply Ability : | 5000pc/day |
| Place of Origin: | China | Brand Name: | Acrel |
|---|---|---|---|
| Certification: | CE;MID | Model Number: | ADL400 |
|
Detail Information |
|||
| Display: | LCD | Communication: | RS485 |
|---|---|---|---|
| Phase: | 3 Phase | Input Current: | 3*1(6)A, 3*10(80)A |
| Working Temperature: | -25~+55 | ||
| Highlight: | iot System Din Rail Energy Meter,Din Rail Multi-function Energy Meter,Three Phase Din Rail Energy Meter |
||
Product Description

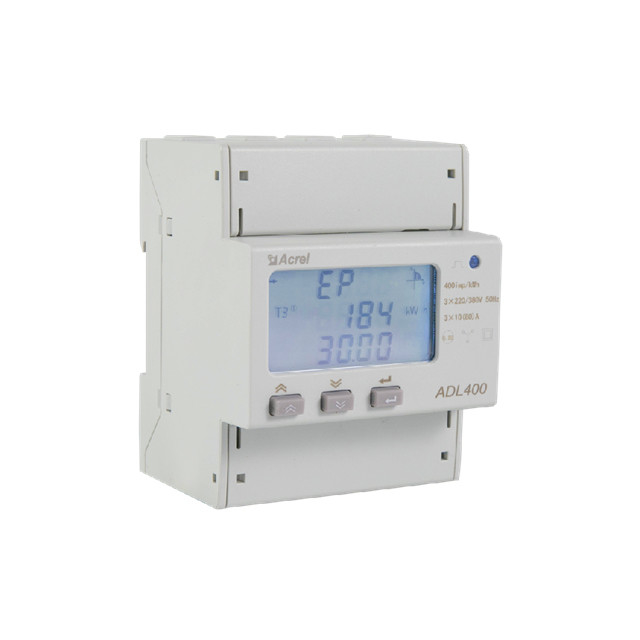

ADL400 MID Three Phase Din Rail Energy Meter
Main features:
General:
ADL400 is designed for power supply systems, industrial and mining companies and utilities to calculate electricity consumption and manage electrical demand. It features high precision, small size and simple installation. It integrates the measurement of all electrical parameters with comprehensive electricity measurement and management, provides various data from the previous 48 months, verifies the 31st harmonic content and the total harmonic content. It is equipped with an RS485 communication port and adapted to MODBUS-RTU. ADL400 can be used in all types of control systems, SCADA systems and energy management systems. The meter meets the related technical requirements of electricity meter in IEC62053-21 standards.
Parameters
| Project | Performance parameters | |||
| Specification | Three-phase 4-wire | |||
| Measurement | Voltage | Reference voltage | 3×230/400V | |
| Consumption | <10VA(Each phase) | |||
| Impedance | >2MΩ | |||
| Accuracy class | Error±0.2% | |||
| Current | Current input | 0.1-10(80)A(Direct access) | ||
| Consumption | <1VA(Single circuit rated current) | |||
| Accuracy class | Error±0.2% | |||
| Power | Active, reactive, apparent power, error±0.5℅ | |||
| Frequency | 45～65Hz(Error±0.2%) | |||
| Metering | Energy | Active energy(Accuracy class: 0.5); reactive energy(Accuracy class 2) | ||
| Clock | ≤0.5s/d | |||
| Digital signal | Energy pulse output | 1 active optocoupler output | ||
| Pulse | Pulse width | 80±20ms | ||
| Pulse constant | 400imp/kWh(Corresponds to the basic current) | |||
| Communication | Interfaces and communication protocol | RS485:Modbus-RTU | ||
| Communication address range | Modbus RTU: 1~ 254； | |||
| Baud rate | 1200bps~19200bps | |||
| Environment | Work temperature | -40°C to +70°C(Direct access) | ||
| Relative humidity | ≤95℅(No condensation) | |||
| Protection level |
IP51 Must be installed in an enclosure with appropriate IP rating; |
|||
