KWh Class 1 ADL200 Din Rail Energy Meter With Digital LCD Display
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
| Minimum Order Quantity : | 1 piece | Packaging Details : | carton box |
|---|---|---|---|
| Delivery Time : | 5-7 days | Payment Terms : | T/T |
| Supply Ability : | 6000 pieces/day |
| Place of Origin: | China | Brand Name: | Acrel |
|---|---|---|---|
| Certification: | CE | Model Number: | ADL3000-E-B/KC |
|
Detail Information |
|||
| Reference Voltage: | AC 220V | Reference Frequency: | 50 Hz |
|---|---|---|---|
| Consumption: | <10VA( Single Phase) | Maximum: | 80A |
| Pulse Constant: | 3200 Imp/kWH | Interface: | RS485 |
| Protocol: | Modbus-RTU | ||
| Highlight: | KC Din Rail Energy Meter,Acrel Din Rail Energy Meter,Acrel Din Rail Energy Meter |
||
Product Description

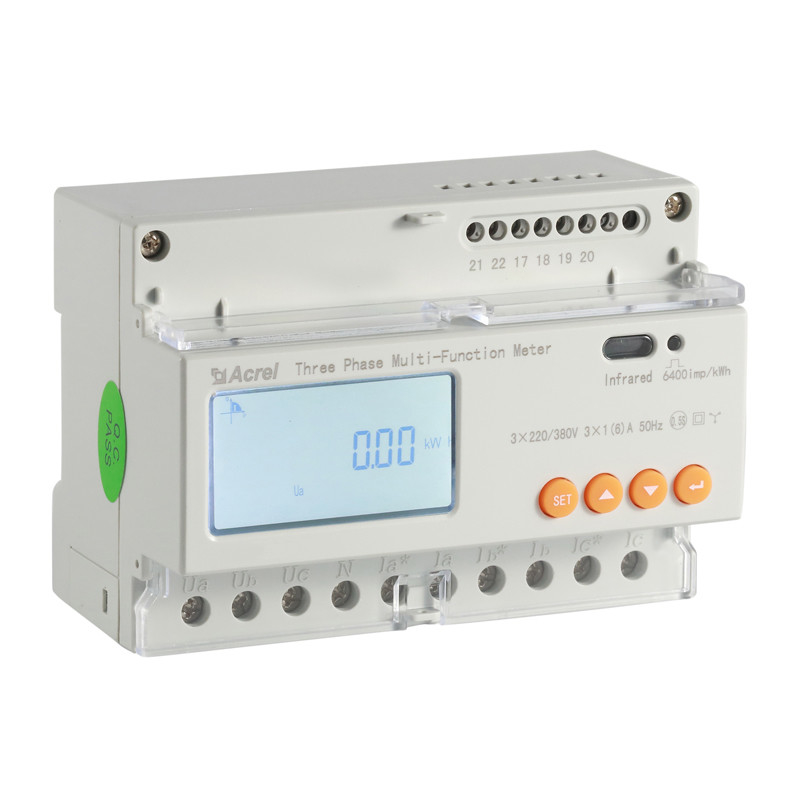

Acrel ADL3000-E-B/KC Din Rail Energy Meter
Three phase smart meters with rs485 compatible with inverters.
The three-phase digital energy meter can measure three-phase current, voltage, power, frequency and power factor and measure the active energy in forward and reverse directions, as well as the blind energy in forward and reverse directions.
Technology parameter
| Voltage | Reference voltage | 3*57.7/100V,3*220/380V,3*100V,3*380V |
| Reference frequency | 50 Hz | |
| Consumption | <10VA( Single phase) | |
| Current | Maximum | 80A |
| Starting current |
direct connect:0.004lb connect via:0.001ln |
|
| Consumption | <1VA | |
| Measurement performance | Accuracy of active kWH | Class 0.5 |
| Standards complicant | IEC 62053-21:2003 | |
| Pulse | Pulse width | 80+20 ms |
| Pulse constant | 400 imp/kWH,6400imp/kWH | |
| Communication | Interface | RS485 |
| Protocol | Modbus-RTU | |
| Environment | Temperature | Operating:-25℃~55℃；Storage:-40℃~70℃ |
| Humidity | ≦95% (No condensation) | |
| Altitude | <2000m |
Typical connection-Din rail energy meter
Certification
Company profile
ACREL CO., Ltd. was founded in 2003 and successfully listed on GEM in 2012. ACREL is a high-tech enterprise that integrats R&D, production, sales and service. since its establishment, it committed to provide users with energy efficiency management and power security system solutions. Acrel Electric has a complete production line from cloud platform software to sensors.
Since the listing in 2012, our company has maintained steady growth. The company will adhere to the concept of "innovation, efficiency, unity, integrity", adhere to steady operation and continuous innovation, and provide more high-quality products, services and solutions for power system users and micro-grid.
At Vietnam Power Equipment and Technology Exhibition, many customers from all over the world, our Acrel team has carried out detailed analysis and explanation of a series of difficult problems raised by customers. Under the enthusiasm of our technical team and sales team, the customer gave us a high evaluation of our products and services.
Acrel Co.,LTD [Stock Code:300286.SZ ] attended HANNOVER MESSE, is one of the few leading companies who provides various systematic of power monitoring, power control, energy management and electrical safety for smart grid users. Since 2003, we have been focused on the research, production and sales of intelligent electric meters and current sensors.
Package and Shipping
If you have any special requirements, for example another current ratio or special size ,please feel free to Contact Us.
