Acrel H3G-TA Battery Monitoring System for UPS monitoring
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
| Minimum Order Quantity : | 1pc | Packaging Details : | carton |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | T/T |
| Supply Ability : | 5000pc/day |
| Place of Origin: | China | Brand Name: | Acrel |
|---|---|---|---|
| Certification: | CE | Model Number: | ABAT100-HS |
|
Detail Information |
|||
| Relative Humidity: | 5%~95% | Atmospheric Pressure Intensity: | 80~110kPa |
|---|---|---|---|
| Power Supply: | DC 24V | ||
| Highlight: | ABAT100-HS Collector Module,Battery Online Monitoring System Collector Module,Acrel Collector Module |
||
Product Description
Battery Online Monitoring System

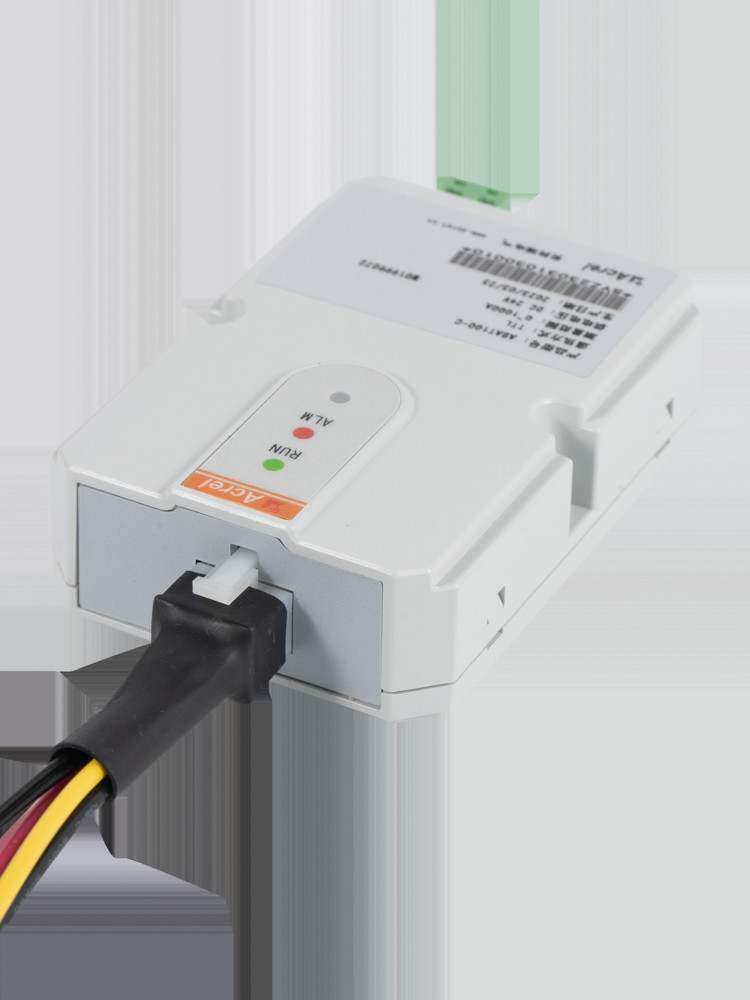

ABAT100-HS Collector Module
Acrel ABAT100 series battery online monitoring system can provide battery operation information such as voltage, internal resistance and internal temperature, including SOC and SOH, and can provide early warning and battery equalization for failed batteries to guarantee battery pack backup time and extend battery pack life. The system has monitoring functions, and is easy to install, maintain and access. The system mainly consists of ABAT100-S single battery monitoring module, ABAT100-C group battery monitoring module, ABAT100-HS collector module and touch screen, etc. The alarm and real-time data can be queried and parameters can be set through the touch screen, and the monitoring platform can be selected to realize networked centralized management.
Lead-acid battery battery monitoring system
| Product Module | ||||||||||||||||||||||||||||
| Model | Function Description | |||||||||||||||||||||||||||
| ABAT100-HS | DC24V input, one to manage a group of batteries, up to 120 batteries in a group. | |||||||||||||||||||||||||||
| ABAT100-S-02 | Monitor one 2V battery, monitor battery voltage, internal resistance and negative terminal temperature. | |||||||||||||||||||||||||||
| ABAT100-S-06 | Monitor one 6V battery, monitor battery voltage, internal resistance and negative terminal temperature. | |||||||||||||||||||||||||||
| ABAT100-S- 12 | Monitor one 12V battery, monitoring battery voltage, internal resistance and negative terminal temperature. | |||||||||||||||||||||||||||
| ABAT100-C | Monitor one charge/discharge current with an ambient temperature with a maximum current range of 1000A. | |||||||||||||||||||||||||||
Technical parameters
| Technical parameters | Description | ||||||||||||||||||||||||
| Working Environment | Operating temperature: - 10℃~50℃ Relative humidity: 5%~95% Atmospheric pressure intensity: 80~ 110kPa | ||||||||||||||||||||||||
| Management Capability | One collector can monitor a maximum of total 120 batteries | ||||||||||||||||||||||||
| Alarm Type | Group voltage overcharge/discharge, single voltage overcharge/discharge, current overcharge/discharge, high internal resistance of single unit, abnormal communication, etc. | ||||||||||||||||||||||||
| Power Supply | DC24V | ||||||||||||||||||||||||
| Protection | With overvoltage and short circuit protection | ||||||||||||||||||||||||
| Communication Interface | With RS485 communication port, support MODBUS/RTU | ||||||||||||||||||||||||
| Insulation withstand voltage | 2000VAC | ||||||||||||||||||||||||
| Installation method | Tie-down mounting or adhesive mounting | ||||||||||||||||||||||||
| Weight | 90g | ||||||||||||||||||||||||
