Acrel Class 0.5S Data Center Power Meter Monitor Device AMC16MA
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
| Minimum Order Quantity : | 1pc | Packaging Details : | carton |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | T/T |
| Supply Ability : | 5000pc/day |
| Place of Origin: | China | Brand Name: | Acrel |
|---|---|---|---|
| Certification: | CE | Model Number: | AMC16 |
|
Detail Information |
|||
| Accuracy: | 1 | Protection Grade: | IP20 |
|---|---|---|---|
| Pollution Grade: | 2 | ||
| Highlight: | Multi-Channel circuit monitoring device,AMC16 series multi-circuit monitoring device,Multi-Channel Energy Meter |
||
Product Description
General

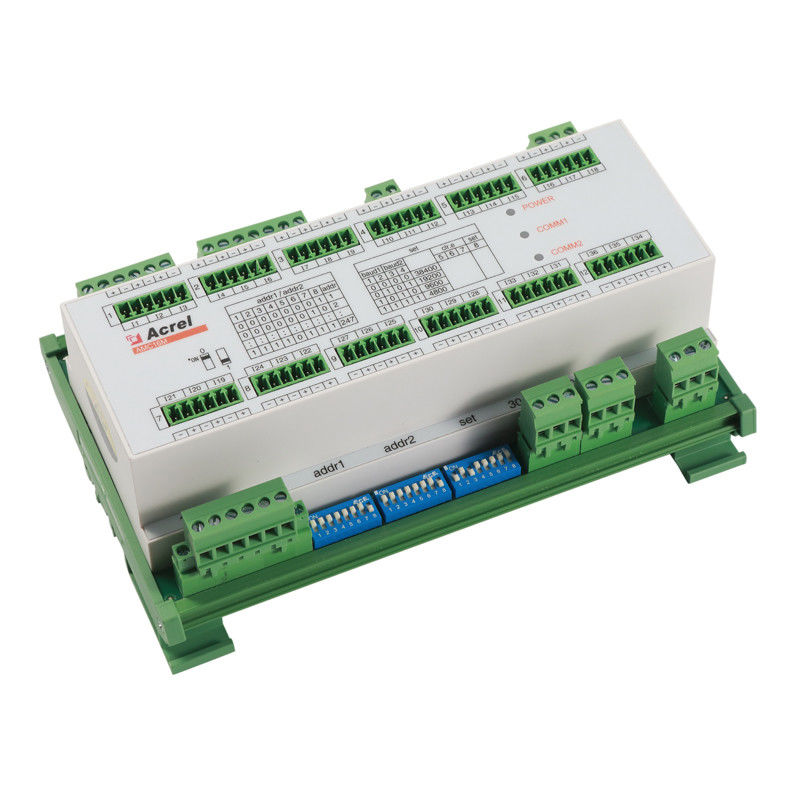

AMC16 series multi-circuit monitoring device of Acrel Company is a measuring device designed specifically for the power supply management of server in the data center. Such device is small and exquisite in design, capable of centralized monitoring on various electric parameters and on-off states of dozens of circuits, including incoming line circuit and outgoing line circuit, and it achieves the highly integration of monitoring circuits in volume.
Technical Features
| Technical Parameter | Value | ||
| Distribution System | AC | ||
|
Measurement of electrical parameters |
Three-phase 2 channels inlet II,U,P,Q,EP,EQ,S; | ||
| Single-phase 36 channels outlet (Three-phase12 channels outlet)I,U,P,Q,EP,EQ; | |||
|
Busbar yoltage |
Rated voltage | 220VAC | |
| Range | 40～400VAC | ||
| Overload |
1.2 times(continuous), 10 times lasting 1 second(instantaneous) |
||
|
Current |
Inlet | CT | XXA5A |
| Range | 0～10A | ||
| Outlet | CT | 100A/20mA | |
| Range | 0～120% | ||
| Overload | 1.2 times for continuous,and 10 times/5 seconds for instantaneous | ||
| Frequency | 45～65Hz | ||
| Accuracy | Inlet | Class 1.0 | |
| Outlet | Class 2.0 | ||
| Auxiliary Power Supply | AC85-265V/DC100-350V | ||
| Insulation resistance | 100MQ | ||
|
Envir -onment |
Temperature | Operation:-15℃~55℃ Storage:-25℃~70℃ | |
| Humidity | Relative humidity≤93% | ||
| Altitude | ≤2500m | ||
| Switch output | 5A 250VAC/5A30VDC | ||
| Communication | RS485(Modbus-RTU) | ||
| Installation | DIN 35mm | ||
Product Specifications
Installation
Wiring
