KWh Class 1 ADL200 Din Rail Energy Meter With Digital LCD Display
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
| Minimum Order Quantity : | 1 Pieces | Packaging Details : | cardboard box |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | T/T |
| Supply Ability : | 5000pcs/day |
| Place of Origin: | China | Brand Name: | Acrel |
|---|---|---|---|
| Certification: | CE | Model Number: | DTSD1352-C |
|
Detail Information |
|||
| Current Rating: | 3x10(80)A; 3x1(6)A | Frequency: | 45~65Hz |
|---|---|---|---|
| Commnunication: | RS485 (MODBUS-RTU) And Infrared | Display: | LCD |
| Multi-rate: | Spike, Peak, Valley And Flat KWh | Dimension: | 127*88*70mm (L*W*H) |
| Wiring: | 3-phase 4wire; 3-phase 3-wire | ||
| Highlight: | Digital Kwh Din Rail Energy Meter,ADL3000 E Din Rail Energy Meter,Sungrow Inverter Din Rail Energy Meter |
||
Product Description

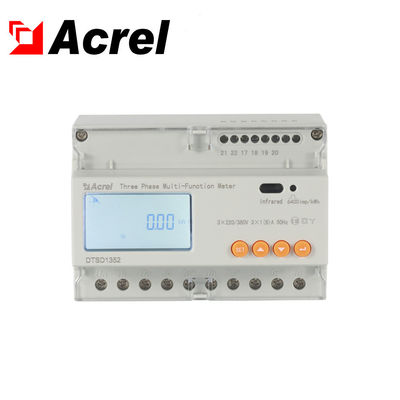

DTSD1352-C three-phase rail type multi-function power meter is a smart meter designed for power monitoring, energy consumption statistics, and management needs of power systems, industrial and mining enterprises, and shared facilities. DTSD1352-C has the advantages of high precision, small size, and convenient installation. . DTSD1352-C integrates all power parameter measurement and comprehensive energy measurement and assessment management, and provides one-way residual current detection and total harmonic measurement within the 21st harmonic. With switch input and relay output can realize "remote signal" and "remote control" functions.
Technical parameter
|
Specification |
3 phase 3 wires, 3 phase 4 wires | |
| Voltage |
Reference voltage |
3×100V, 3×380V,3×57.7/100V, 3×220/380V |
| Consumption |
<10VA(Single phase) |
|
| Impedance |
>2MΩ |
|
| Accuracy class | Error±0.2% | |
| Current | Input current |
3×1(6)A (second connection with 3- phase load line via extra selected CTs) 3×10(80)A (direct connection with 3-phase load line via CTs built in ADL3000-E) |
| Consumption |
<1VA(Single phase rated current) |
|
| Accuracy class | Error±0.2% | |
| Power | Active, reactive, apparent power, error±0.5℅ | |
| Frequency |
45～65Hz, Error±0.2% |
|
| Temperature | -40℃～99℃ | |
| Energy | Active energy(Accuracy class:0.5, 1), reactive energy(Accuracy class 2) | |
| Clock |
≤0.5s/d |
|
| Energy pulse output | 1 active optocoupler output, 1 reactive optocoupler output | |
| Switching output |
1 Switching output |
|
| Switching input | 1 optocoupler input | |
| Width of pulse | 80±20ms | |
| Pulse constant |
6400imp/kWh,400imp/kWh(Correspond with the basic current) |
|
| Interface and communication |
RS485:Modbus RTU |
|
| Relative temperature | -25℃~+55℃ | |
| Relative humidity | ≤95℅(No condensation) | |
|
Multi-rate/Flexible Tariff ● 4 Time zone ● 4 Tariff rate (Spike, Peak, Flat, Valley) ● 2 Time period list ● 14 Time period by day ● Data Frozen (last 48 months or last 90 days) ● Max demand and occurrence time |
|
|
2 Channel RS485 Communication ● Protocol: MODBUS-RTU ● 1 channel RS485 or 2 channel RS485 both optional |
|
|
DO/DI Switch ● 1 channel DO ● 1 channel DI |
|
