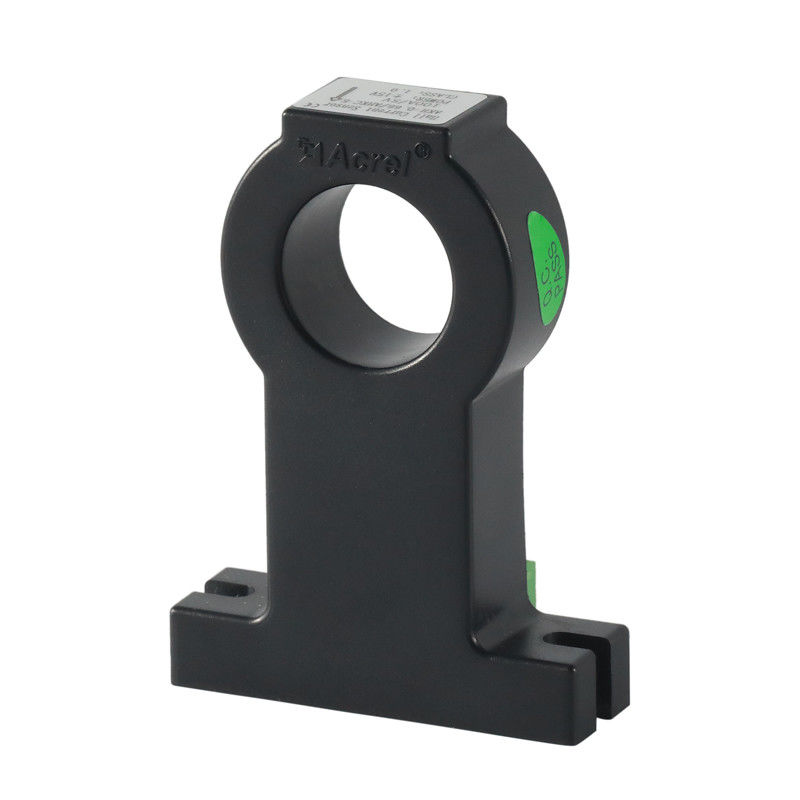

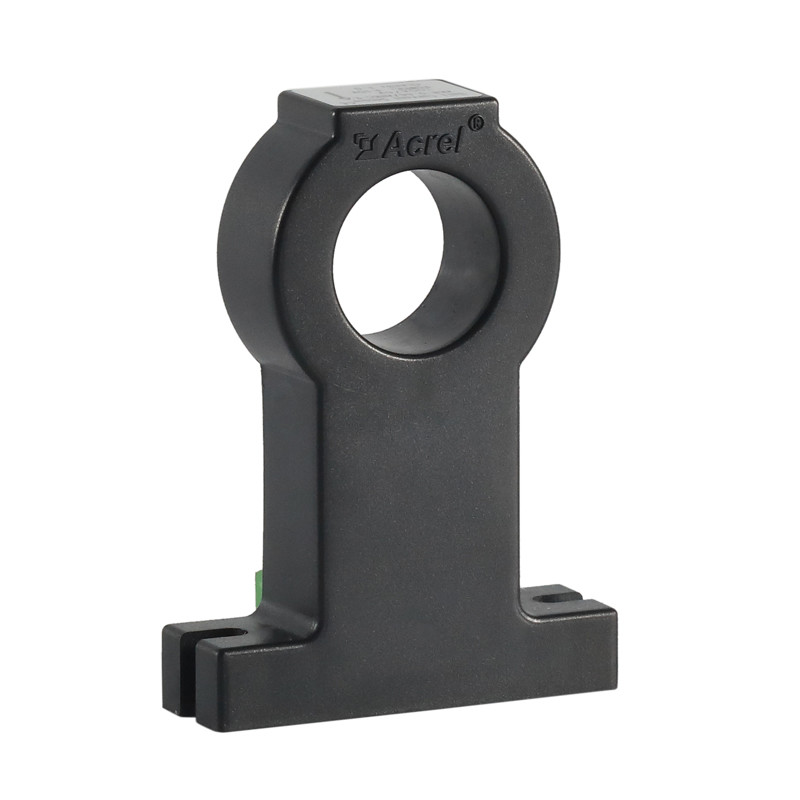

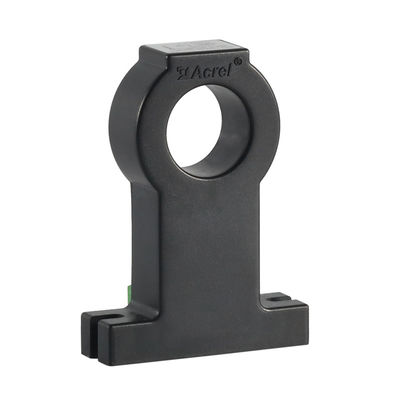

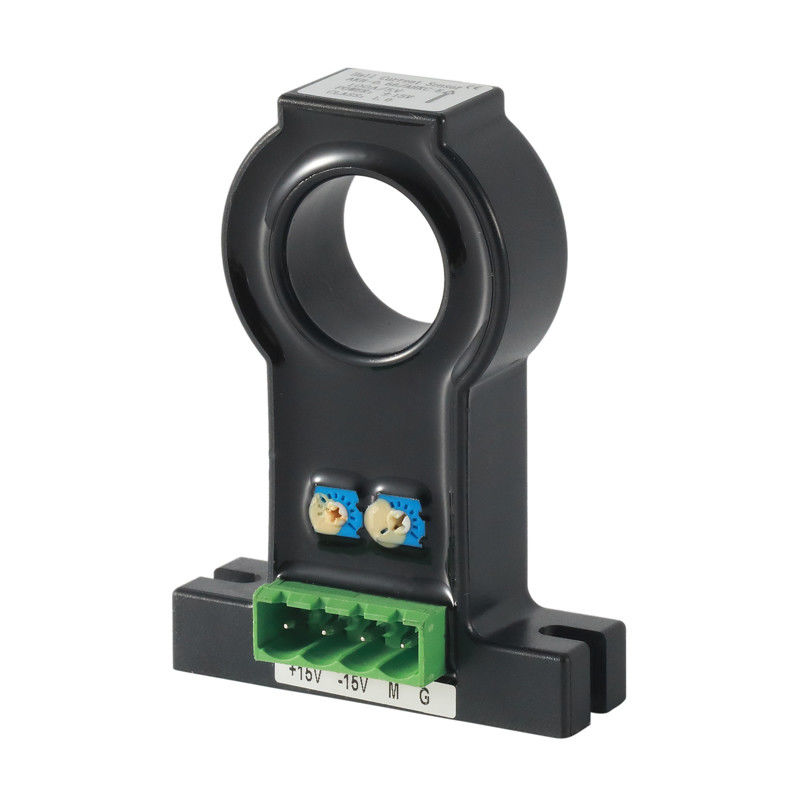

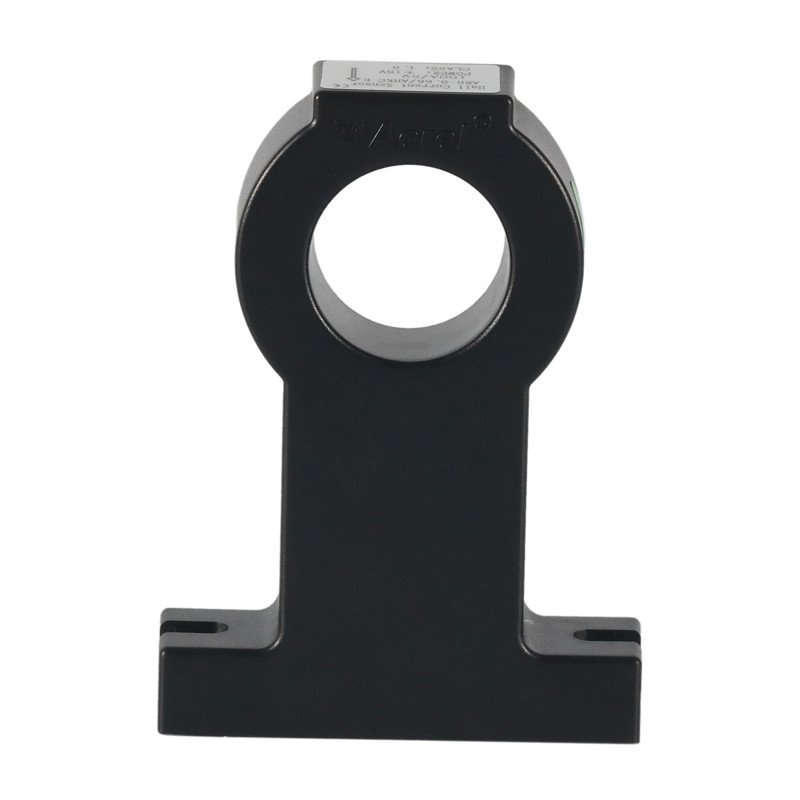

Acrel AHKC-BS AC DC Hall Effect Current Sensor Static Converters For Motor Drivers
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
| Minimum Order Quantity : | 1 pcs | Price : | USD34-325/pcs |
|---|---|---|---|
| Packaging Details : | Individually packed in big carton | Delivery Time : | 3 days |
| Supply Ability : | 10000/month |
| Place of Origin: | China | Brand Name: | Acrel |
|---|---|---|---|
| Certification: | CE | Model Number: | AHBC-LTA |
|
Detail Information |
|||
| Accuracy Class: | 1.0 | Power Voltage: | DC±15V（allowable Fluctuation±20%) |
|---|---|---|---|
| Zero Offset Voltage: | ±20mV | Offset Voltage Drift: | ≤±1.0mV/℃ |
| Linearity: | ≤0.2%FS | Response Time: | ≤5us |
| Bandwidth: | 0～20kHz | Isolation Voltage: | 3.5kV/50Hz/1min |
Product Description
Hall current sensor is mainly applicable to the isolation and conversion of complex signals such as AC, DC, pulse, etc. through the principle of Hall effect, the transformed signal can be directly received by various acquisition devices such as ad, DSP, PLC, secondary instrument, etc. T with the advantages of response time block, high accuracy of current measurement range, strong overload ability,
Technical Parameters
| Parameters | Index |
| Rated Input Current | 0～(50-500)A |
| Rated Output Voltage | ±5V/±4V |
| Accuracy Class | 1.0 |
| Power Voltage | DC±15V(allowable fluctuation±20%) |
| Zero Offset Voltage | ±20mV |
| Offset Voltage Drift | ≤±1.0mV/℃ |
| Linearity | ≤0.2%FS |
| Response Time | ≤5us |
| Bandwidth | 0～20kHz |
| Isolation Voltage | 3.5kV/50Hz/1min |
| Operating Temperature | -40℃～85℃ |
| Storage Temperature | -40℃～85℃ |
| Consumption |
≤0.5W |
Application
