Ba20-AI/I Acrel 12vdc Electric Current Transducers Analog 4-20ma Modbus Rtu
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
| Minimum Order Quantity : | 1 | Delivery Time : | 3 work days |
|---|---|---|---|
| Payment Terms : | L/C, T/T | Supply Ability : | 20000000 per year |
| Place of Origin: | Jiangsu, China | Brand Name: | Acrel |
|---|---|---|---|
| Certification: | ISO/CE | Model Number: | AKH-0.66 |
Product Description

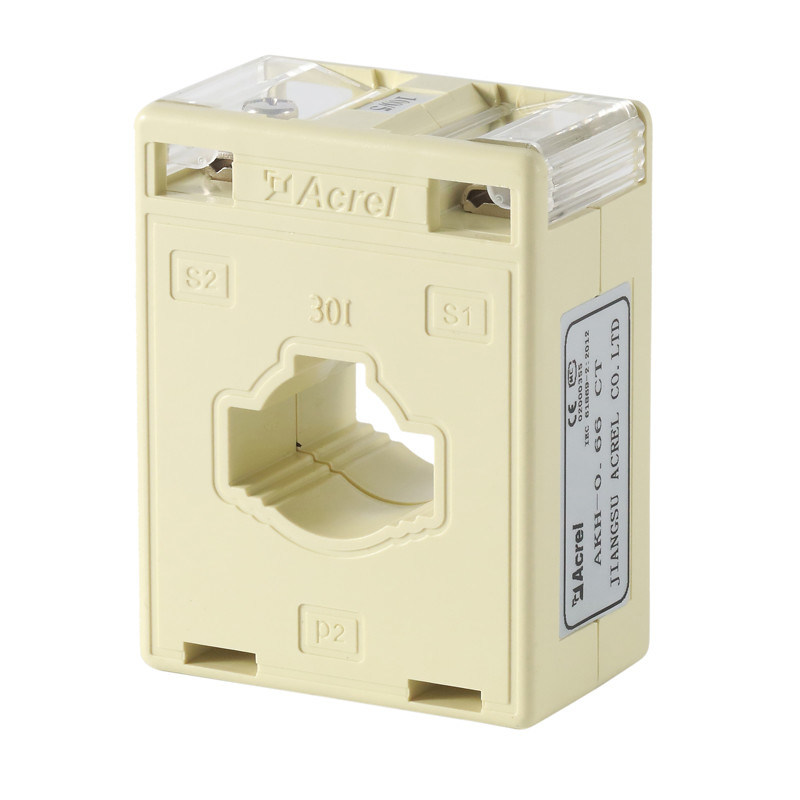

AKH-0.66/I Series Current Transformer
● Current transformer for measurement
● Suitable for cables or copper bus
● Used with energy meters or relays
Standards
IEC/EN61869-1, IEC/EN61869-2
|
Characteristic |
||
|
|
|
|
● Security factor: FS＜5 ● Maximum system voltage: 720V AC ● Test voltage: 3kV AC(1min) |
● Rated frequency: 50/60Hz ● Rated short-time thermal current: Ith=40~60In ● Rated dynamic current: Idyn=2.5Ith ● Rated secondary current: X/5A (X/1A upon request) ● Rated primary current: Ranging up to 6000A |
● Continuous overload: 120%In ● Protection level: IP30 ● Casing: Non-flammable, polycarbonate self-extinguishing ABS ● Environment: Operating temperature: -25℃-+50℃ |
Specifications
