KWh Class 1 ADL200 Din Rail Energy Meter With Digital LCD Display
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
| Minimum Order Quantity : | 1 | Delivery Time : | 5-8 work days |
|---|---|---|---|
| Payment Terms : | L/C, T/T | Supply Ability : | 2000000 per year |
| Place of Origin: | Jiangsu, China | Brand Name: | ACREL |
|---|---|---|---|
| Certification: | ISO/CE | Model Number: | ADL |
Product Description

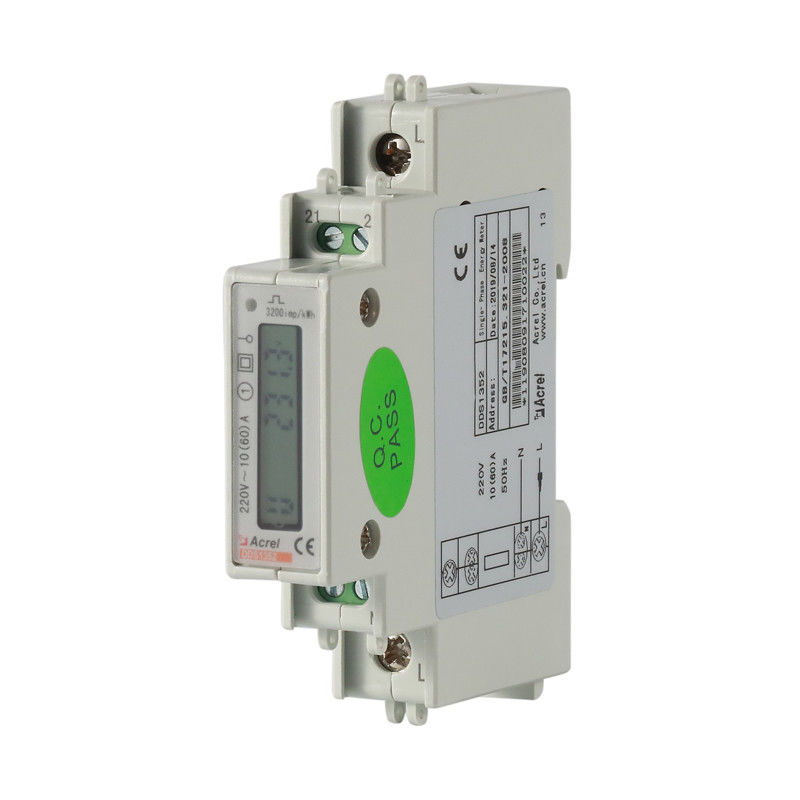

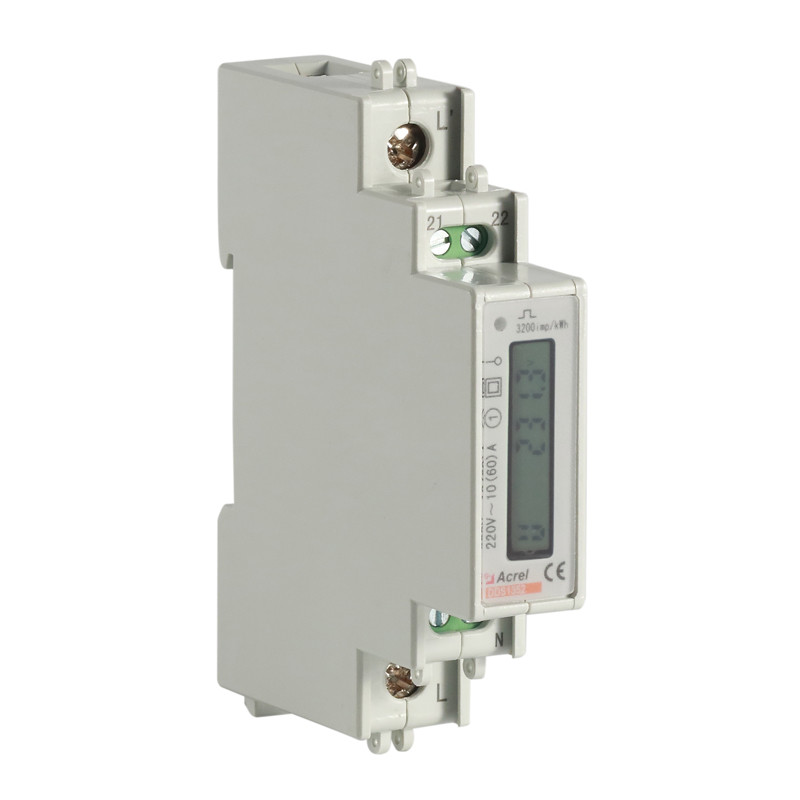

ADL10-E Single Phase Electric Energy Meter
● AC 220V
● 10(60)A
● RS485,MODBUS-RTU
● LCD display
● kWh Class 1,Kvarh Class 2
● U,I,P,Q,S,PF,kWh,kvarh
● DIN 35mm
Characteristic
Function
Accuracy
kWh Class 1,Kvarh Class 2
Frequency
50HZ
Auxiliary power supply(self supply)
AC 220V(L-N),range:154~264Vac
Consumption
<10VA(Single phase)
Installation
DIN 35mm
Dimension(L*W*H)
18*88*70 mm
Starting current
0.004Ib
LCD Display
Wiring
Typical connection
