BA10-AI/V Current Transducer

Minimum Order Quantity :	1 Piece	Price :	$35.00 / Piece

Place of Origin:	Jiangsu, China	Brand Name:	Acrel
Certification:	ISO CE	Model Number:	BA10-AI/V

Detail Information
Usage:	Power	Phase:	Single
Coil Structure:	TOROIDAL	Coil Number:	AUTOTRANSFORMER
Product Name:	BA10-AI/V Current Transducer	Accuracy Class:	0.5%
Response Time:	≤350ms	Installation:	Din Rail 35mm
Consumption:	≤1W	Input Current:	AC 0-50A
Through-Hole Size:	Diameter 10mm	Operation Temperature:	-10~55℃
Standard:	GB/T13850	Selling Units:	Single Item
Single Package Size :	7.6X7.4X2.25 Cm	Single Gross Weight:	0.400 Kg
Package Type:	It Is Packed In A Crash Bag And Then Put Into A Cardboard Box.If Packaging Has Special Requirements, Can Communicate With Customer Service Personnel, Customized

Product Description

BA10-AI/V Current Transducer

Measurement
- Direct AC current measurement up to 600A
- Overload: 1.2 times of rated value Application
- Industrial automation

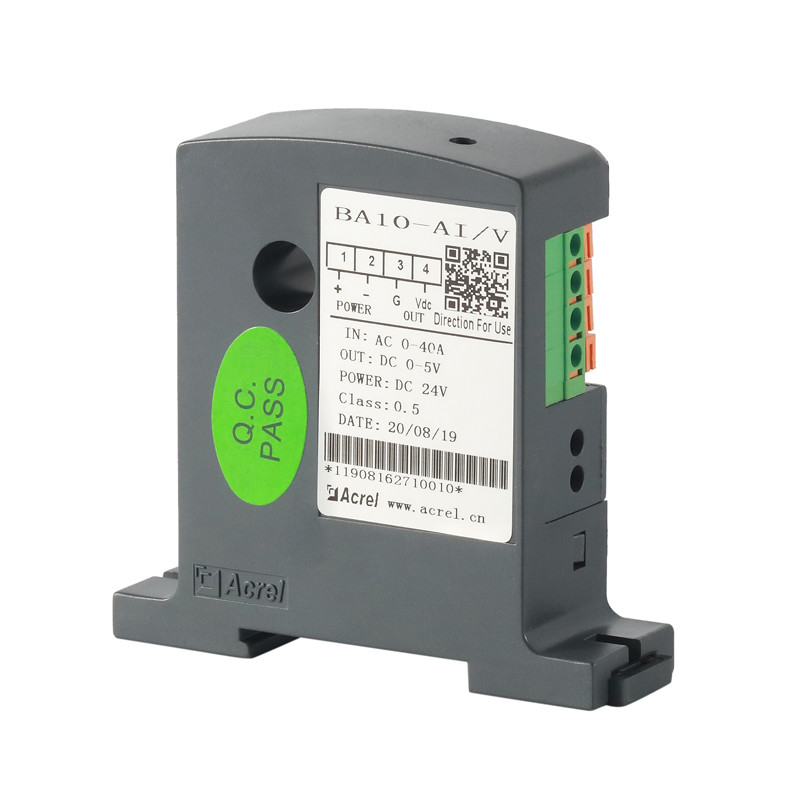

Appearance

Technical Parameters

^{Auxiliary Power}			DC12V
				DC24V
Consumption			≤1W
Through-hole size			φ10mm
Input	Current	AC0~(8~50)A
Output	Nominal value	DC4-20mA,or0-20mA,0-5V,0-10V,etc
		Load resistance	Current output≤500Ω,Voltage output≥1kΩ
Accuracy Class			0.5%
Response time			≤350ms
Temperature			Operation:-10 to+55℃ Storage:-25 to 70℃
Temperature coefficient			≤200ppm/℃
Installation			(Rail)Din 35,fix on cubicle with screws
Standards			GB/T13850

After-sales Service

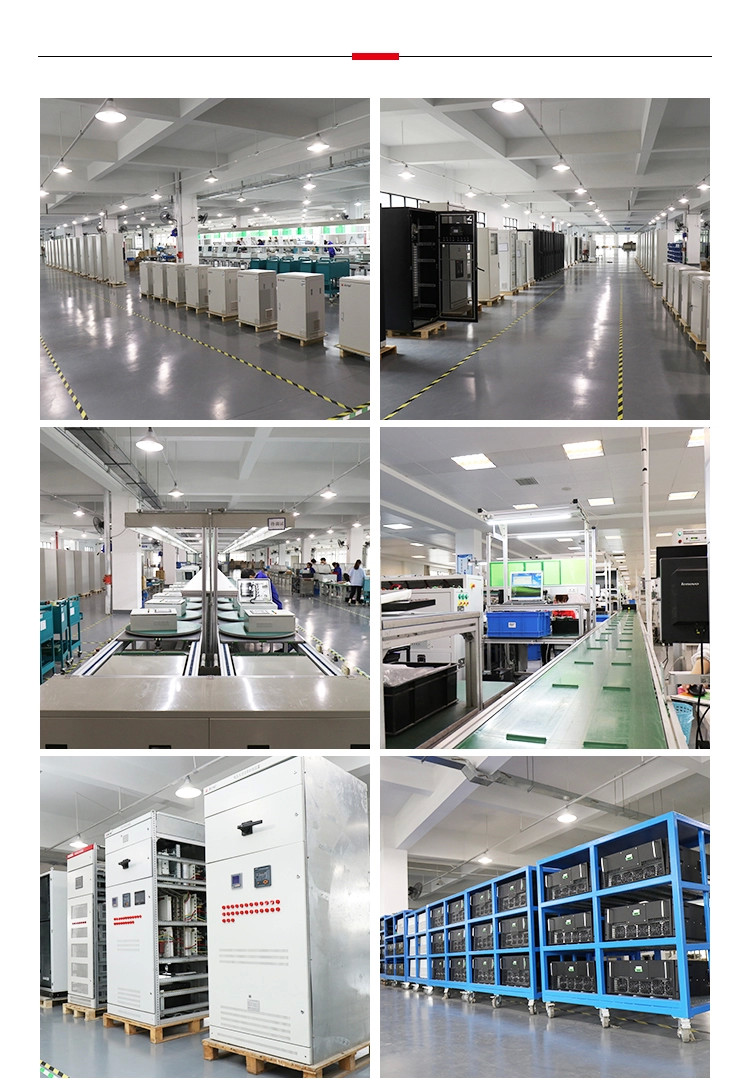

Company Profile
