Acrel ARD2F Series Smart Motor Protection Relay Low-voltage Motor Circuits Ensuring The Safe Operation Of The Motor
Contact Person : Dina Huang
Phone Number : 18761502682
WhatsApp : +8618761502682
| Minimum Order Quantity : | 1 | Price : | USD15-35PCS |
|---|---|---|---|
| Packaging Details : | Single package size: 10X10X10cm; Single gross weight:10.000 kg; Package Type: carton box | Delivery Time : | 5-8 work days |
| Payment Terms : | T/T |
| Place of Origin: | Jiangsu, China | Brand Name: | ACREL |
|---|---|---|---|
| Certification: | CE CCC ISO9000 | Model Number: | AM5 Series |
Product Description

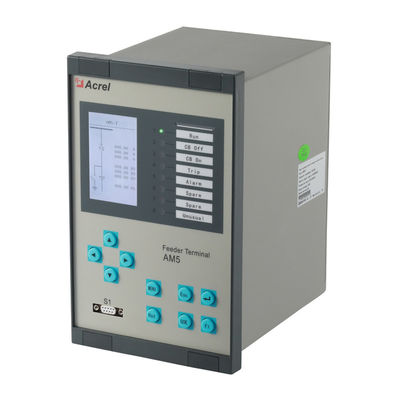

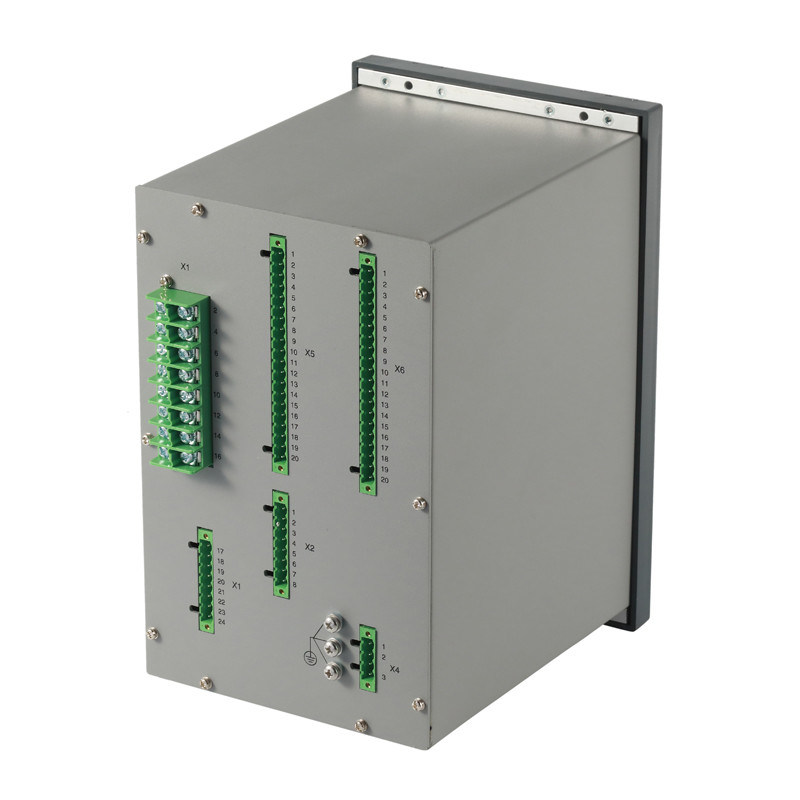

AM5 Series Protection Relay
● A complete set of protection, related to the application;
● 8 current input, 4 voltage input, 16 DI, 10 DO;
● Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V;
● 2 RS485 serial communication, IEC 60870-5-101, IEC60870-5-103 and Modbus-RTU;
● 1 RS232 for user update;
● 1 GPS for GPS timing;
● More than 200 sequence of event records, more than 400 system logs, and more than 10 seconds tripping context records;
● Powerful graphic programmable Logic.
Parameters
| Auxiliary power supply | Rated input | AC220V/DC220V, DC110V, DC48V |
| Range | Rated Voltagex (1±20%) | |
| Power consumption | ≤10W (DC) | |
| Rated Voltage | Rated input | AC 100V/100V |
| Range | 1-120V | |
| Accuracy | ±0.5% | |
| Power consumption | 0.5VA (single phase) | |
| Rated Current | Rated input | AC 5A/1A |
| Range | 0.04ln 〜15ln | |
| Accuracy | ±0.5% | |
| Power consumption | 0.5VA (single phase) | |
| Frequency DI | Rated frequency | 50Hz or 60Hz |
| Range | 45〜55Hz or 60Hz | |
| Accuracy | ±0.1 Hz | |
| Rated Voltage | AC220V/DC220V, DC110V, DC48V | |
| Range | Rated Voltagex (1±20%) | |
| Power consumption | S1W (DC220V) single DI | |
| DO | Mechanical life | N10000 |
| Switching capacity | N1000W, L/R = 40ms | |
| On current | Continuous N5A, short time (200ms) N30A | |
| Interrupting capacity | N30W, L/R = 40ms | |
| Environment | Temperature | ‘-10℃ ~ +55℃ |
| Humidity | 5%〜95% (No condensation and freeze inside) | |
| Altitude | 4000m | |
| Insulating property | Insulation resistance | >100MQ, 500Vdc |
| Dielectric strength | Power frequency voltage withstand 2kV | |
| Impulse voltage | ±5kV (1.2/50Ws, 0.5J) |
